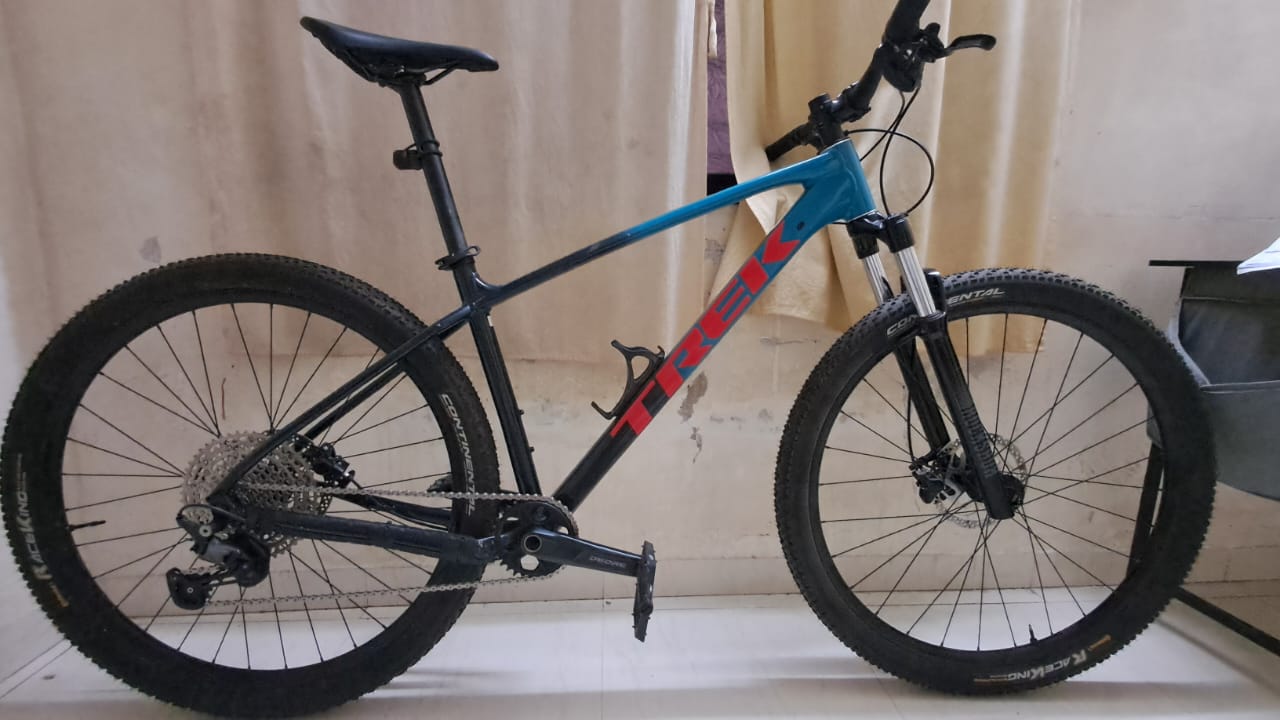

Trek Marlin 7 Gen 3- Large -2023

Frameset

Frame

Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew

*Fork

Size: S
RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel

Size: M , ML , L , XL
RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels

Hub front

Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew

Hub rear

Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR

Skewer rear

Bontrager Switch thru axle

*Rim

Size: S
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve

Size: M , ML , L , XL
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve

*Tyre

Size: S
Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40"

Size: M , ML , L , XL
Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40"

Drivetrain

Shifter

Shimano Deore M6100

Rear derailleur

Shimano Deore M6100

*Crank

Shimano Deore 12-Speed Crankset – FC M6100-1 (32T)

Size: ML , L , XL
FSA Alpha Drive, 28T steel ring, Boost, 175 mm length

Bottom bracket

Tripeak BSA Threaded Ceramic 68mm Bottom Bracket (Red)

Cassette

Shimano Deore M4100, 11-46, 10-speed

Chain

KMC X12,

Pedal

Crank Brothers Flat

Components

Saddle

Bontrager Arvada, steel rails, 138 mm width

*Seatpost

Size: S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length

Size: ML , L , XL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

*Handlebar

Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width

Size: M , ML , L , XL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Grips

Bontrager XR Trail Comp, nylon lock-on

*Stem

Size: S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length

Size: M , ML , L
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length

Size: XL
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length

Head set

Semi-integrated, 1-1/8"

Brake

Shimano MT200 hydraulic disc

*Brake rotor

Size: S , M , ML , L , XL
Shimano RT26, 6-bolt,160 mm

Size: M , ML , L , XL
Shimano RT26, 6-bolt,180 mm

Brake Set

Shimano MT200 hydraulic disc

Weight

Weight

M - 14.60 kg / 32.19 lbs

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
