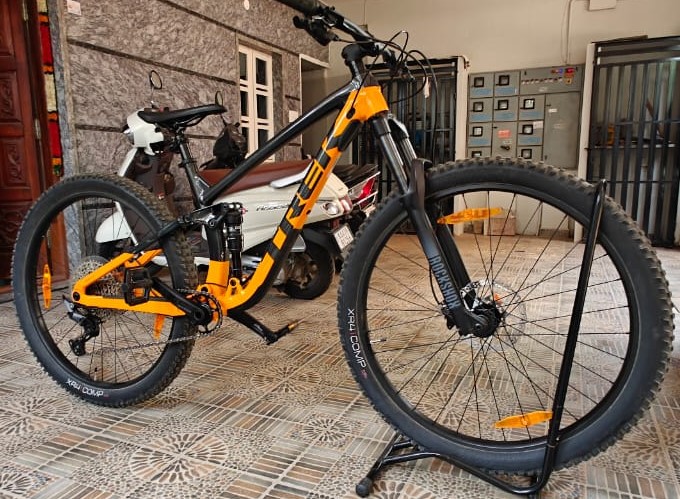

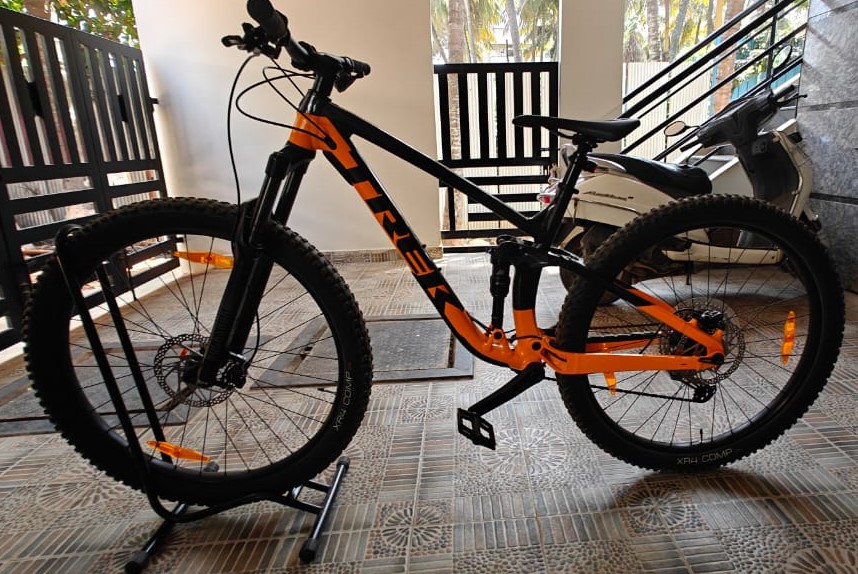

TREK FUEL EX5 -M/L-MTB-2023

The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, Tubeless Ready wheels, a 12-speed Shimano Deore drivetrain and a TranzX dropper post, so you’re ready for anything.

Specifications

Frameset

Frame

Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm

Fork

Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

Shock

X-Fusion Pro 2, 2-position damper, 205 mm x 60mm

Wheels

Hub front

Shimano TC500 alloy, CentreLock, 110×15 mm thru axle

Hub rear

Shimano TC500 alloy, CentreLock, 148×12 mm thru axle

Skewer rear

Bontrager Switch thru-axle, removable lever

*Rim

Size: S, M, L, XL
Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve

Size: S, M, L, XL
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve

*Tyre

Size: S

Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5×2.40″

Size: S, M, L, XL

Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29×2.40″

Tyre part

Bontrager TLR sealant, 180 ml/6 oz

Rim strip

Bontrager TLR

Max tyre size

Frame: 29×2.50″, Fork: See manufacturer

Drivetrain

Shifter

Shimano Deore M6100, 12-speed

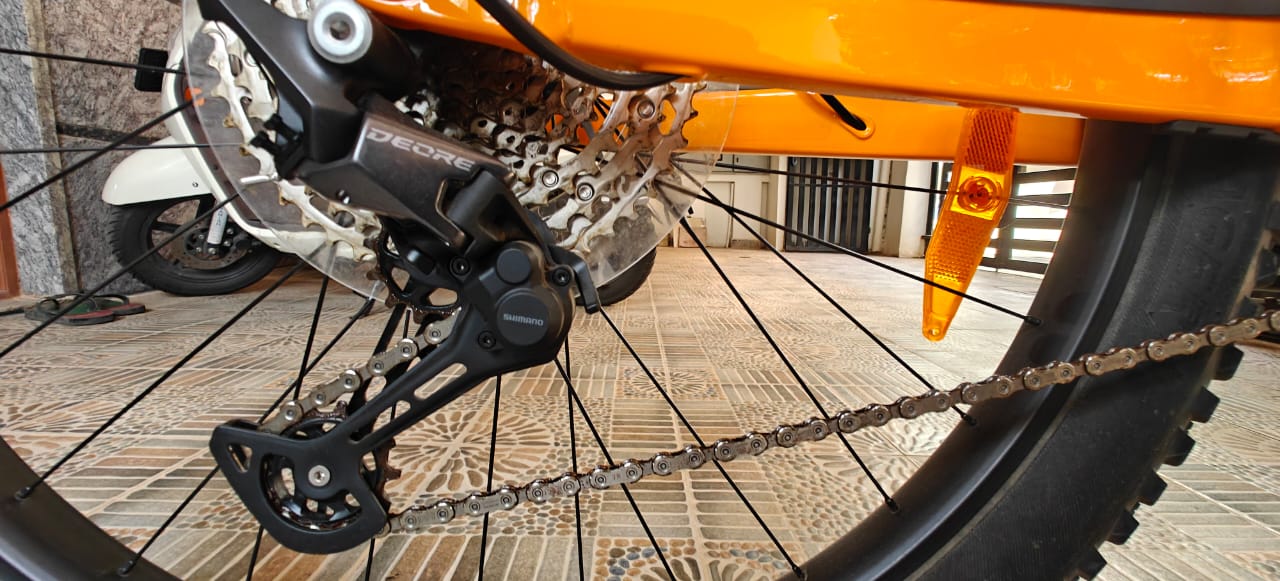

Rear derailleur

Shimano Deore M6100, long cage

Crank

Shimano MT512, 30T ring, 55 mm chain line, 170 mm length

Bottom bracket

Shimano BB-MT501 BSA

Cassette

Shimano Deore M6100, 10-51, 12-speed

Chain

Shimano Deore M6100, 12-speed

Max. chainring size

Max: 34T (oval – 32T) Min: 30T (oval – 32T)

Components

Saddle

Bontrager Verse Short, stainless steel rails

*Seatpost

Size: S

TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm

Size: M, L, XL

TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm

Handlebar

Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width

Grips

Trek Line Comp, nylon lock-on

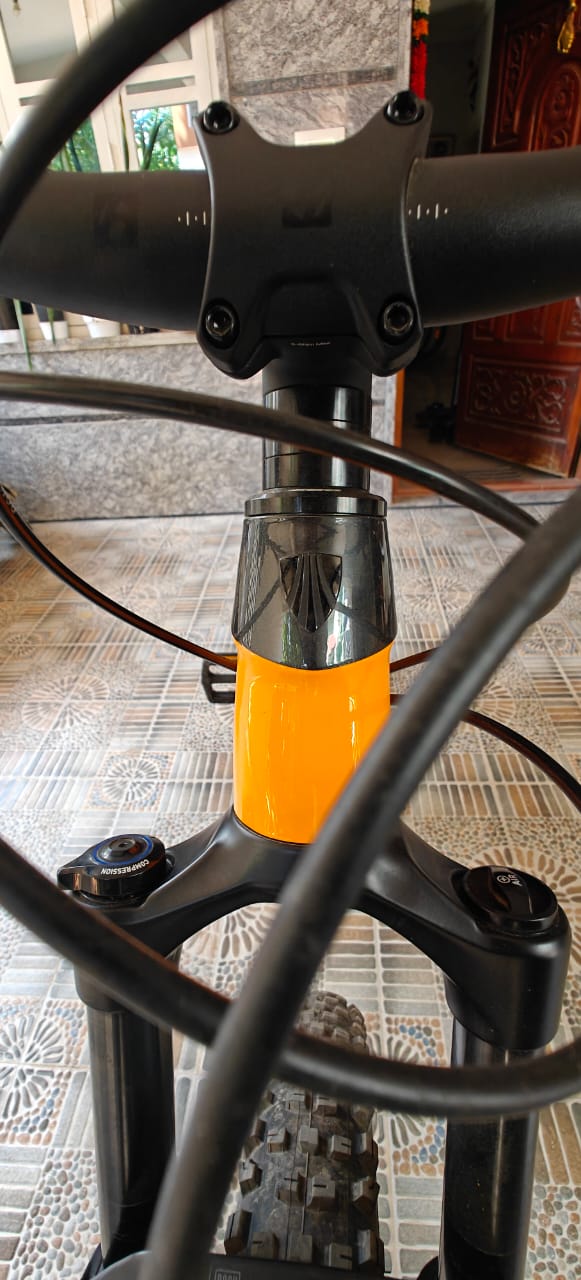

Stem

Bontrager Comp, 31.8 mm, 7-degree, 35 mm length

Head set

FSA Orbit, sealed cartridge bearing, 1-1/8” top, 1.5” bottom, 1.5 crown

Brake

Shimano hydraulic disc, MT201 lever, MT200 calliper

Brake rotor

Shimano RT10, CenterLock, 180 mm

Rotor size

Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer

Weight

Weight

M – 17.02 kg / 37.53 lbs (with TLR sealant, no tubes)
